Phase 1

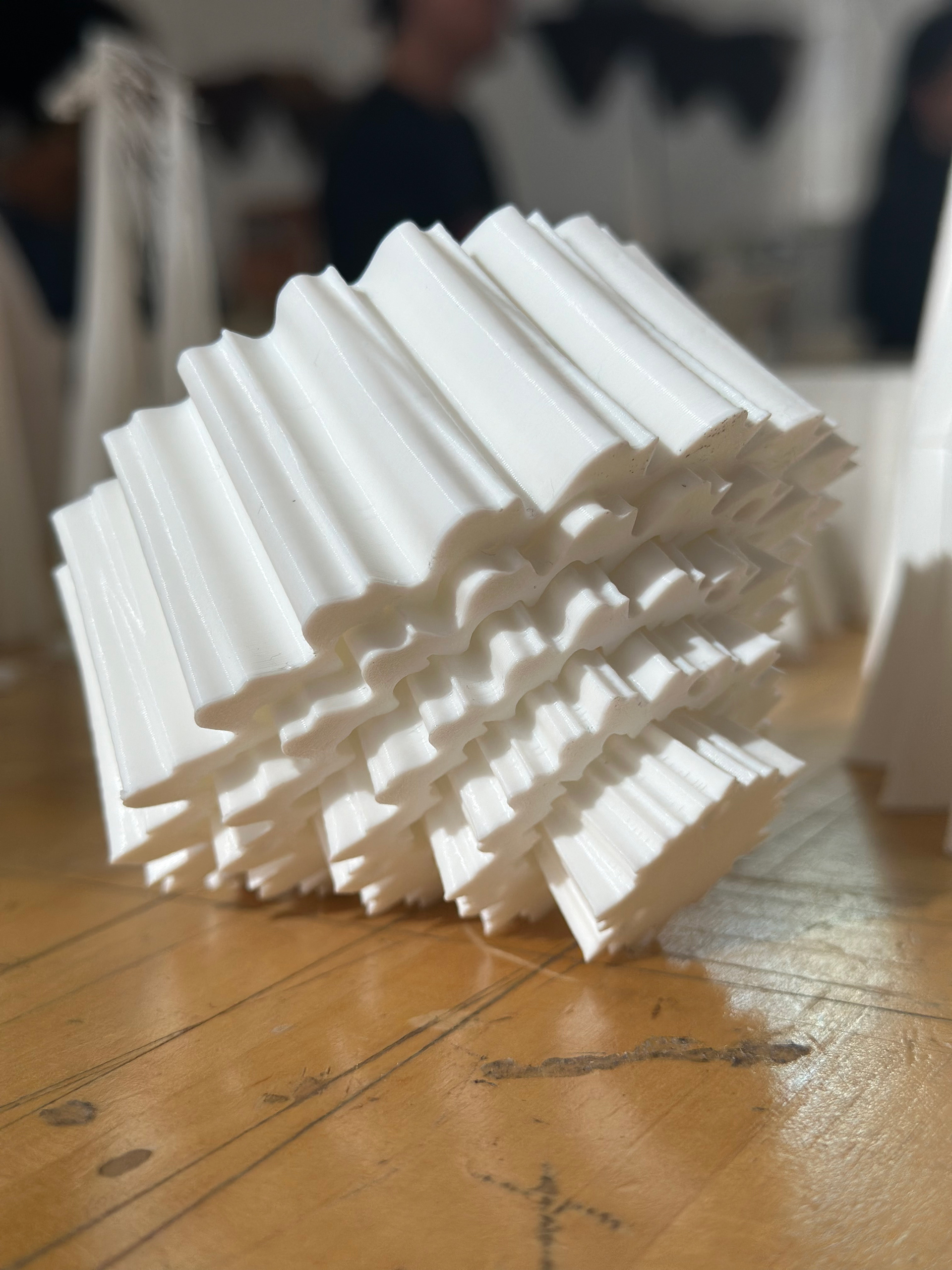

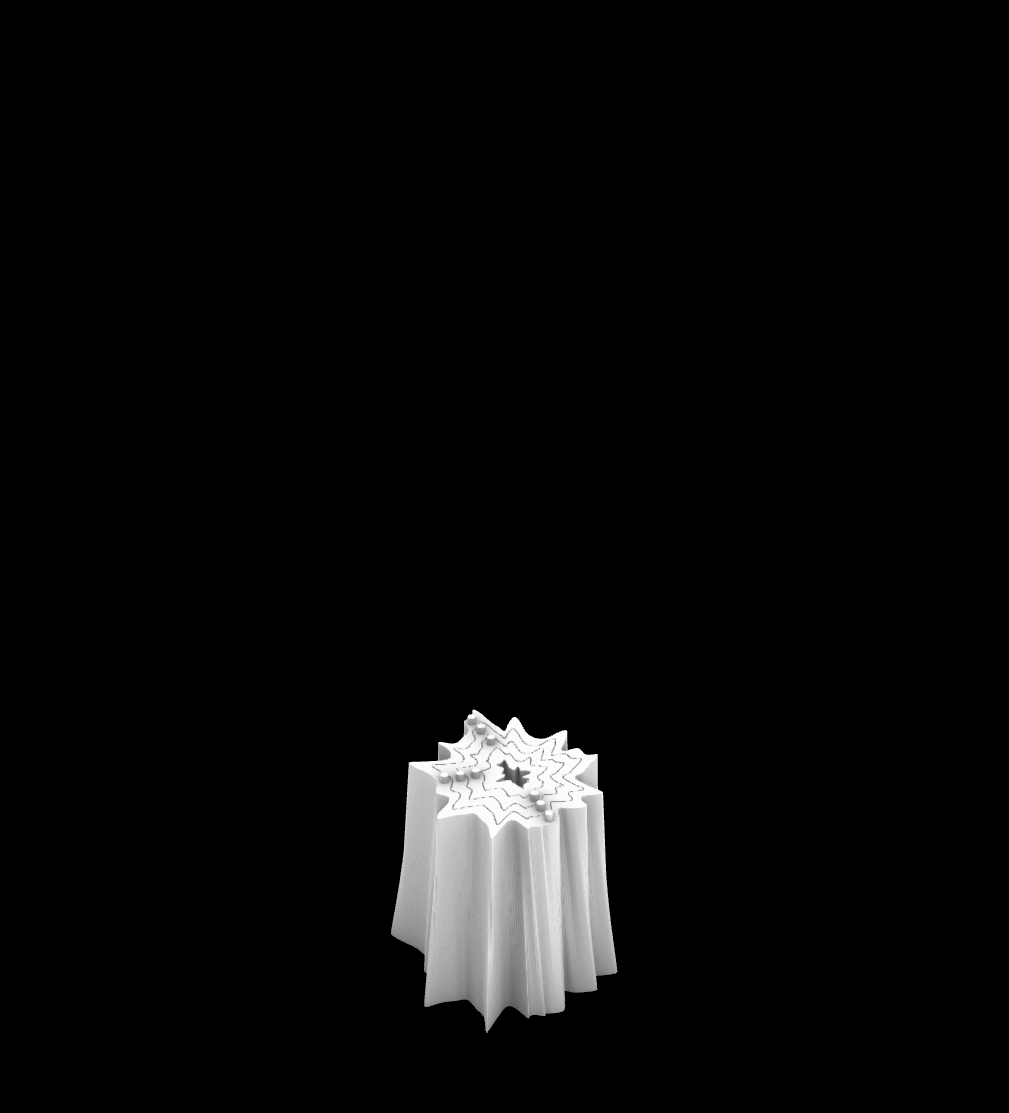

This 5 week project is based upon exploring the limits of digital fabrication. With the concept of 2.5D nesting, this new mode of design takes advantage of spatial properties within 3D printing. In order for fabrication to be utilized on a large scale, an acknowledgment needs to be made that a machine can only be so large; to combat this statement, this methodology carefully “nests” these object while printing, similar to Russian Nesting Dolls. This project delves into the new possibilities for the execution of complex designs and architectural forms that were previously thought to be unachievable by utilizing diverse uses of additive manufacturing.

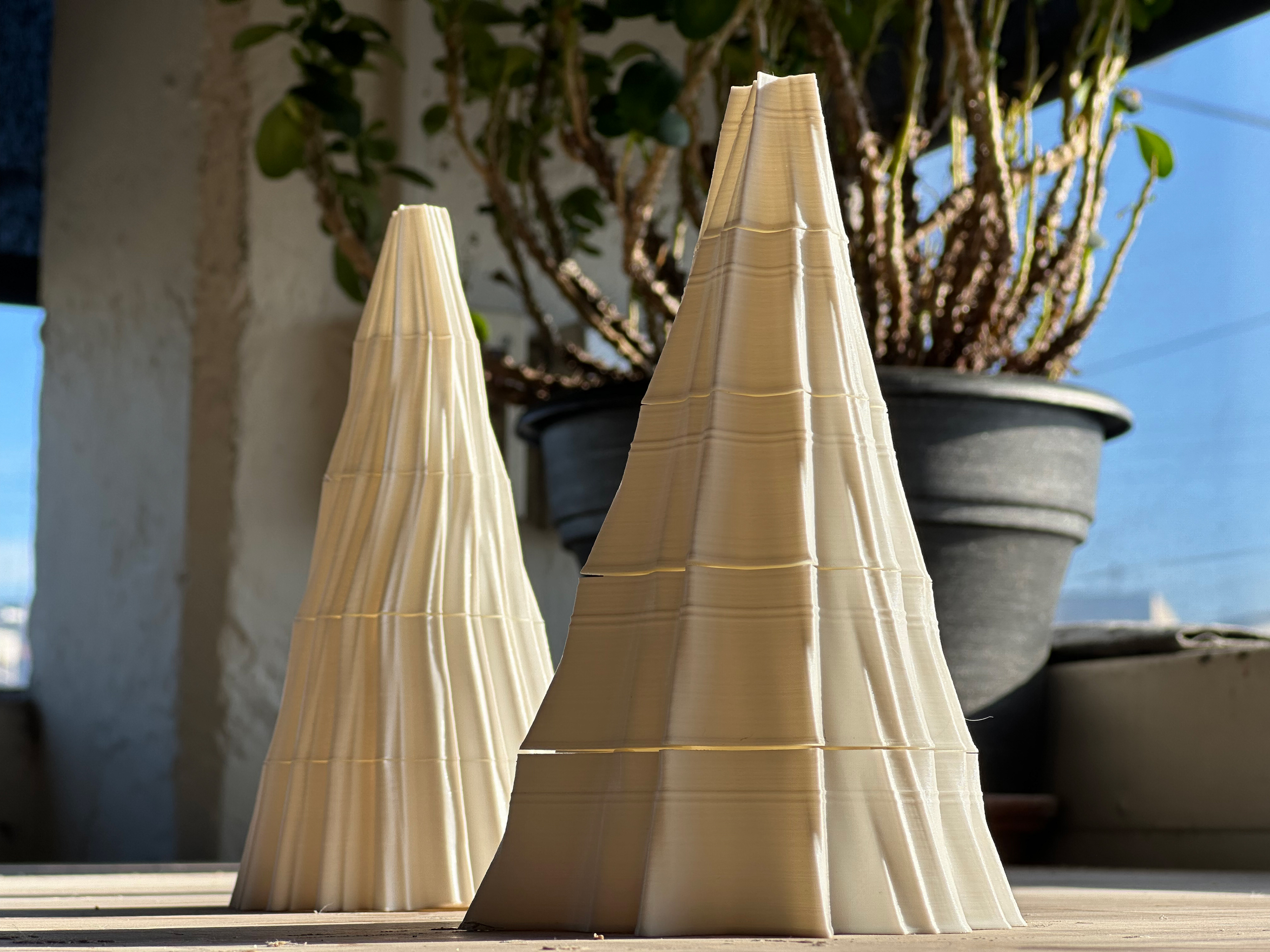

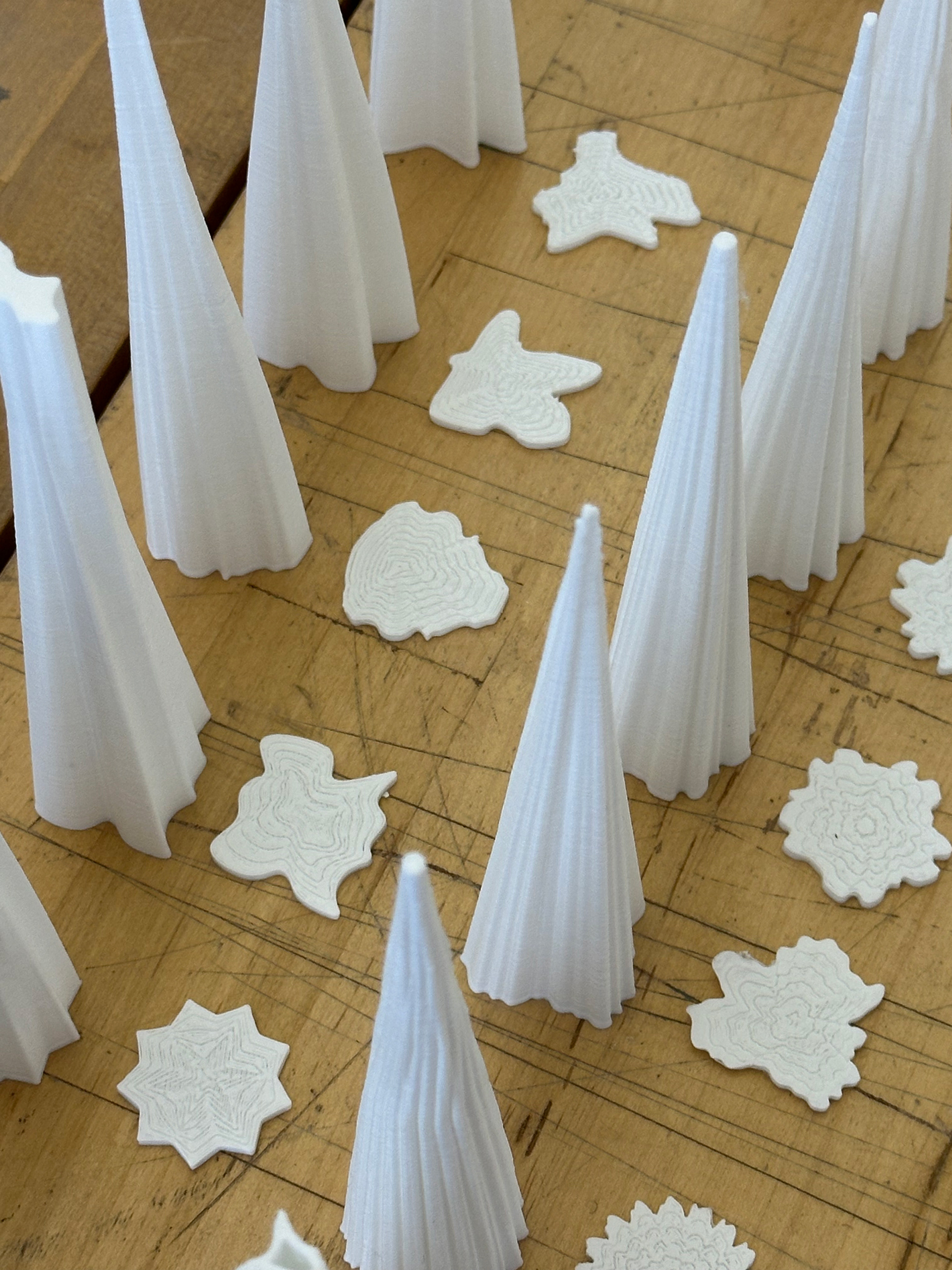

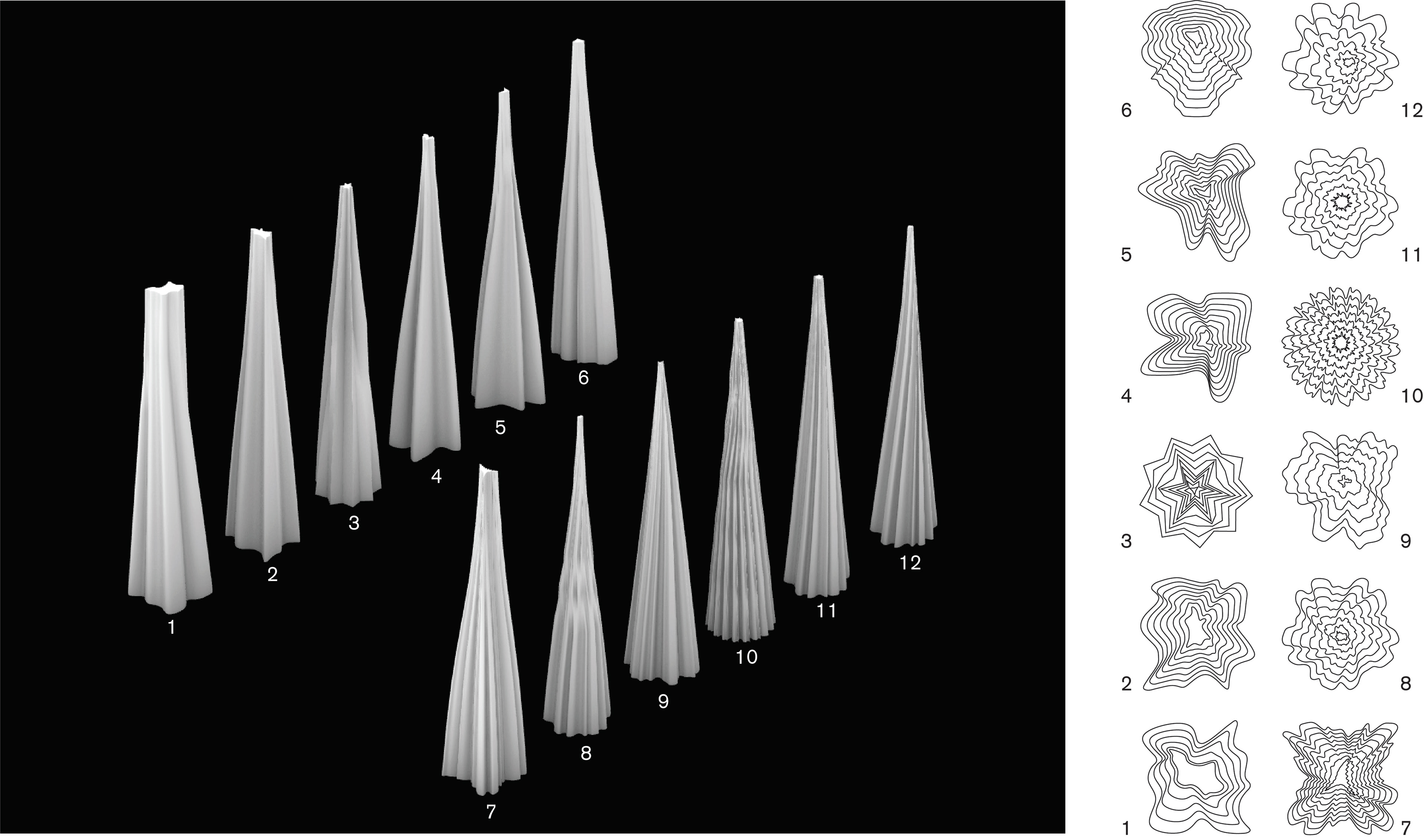

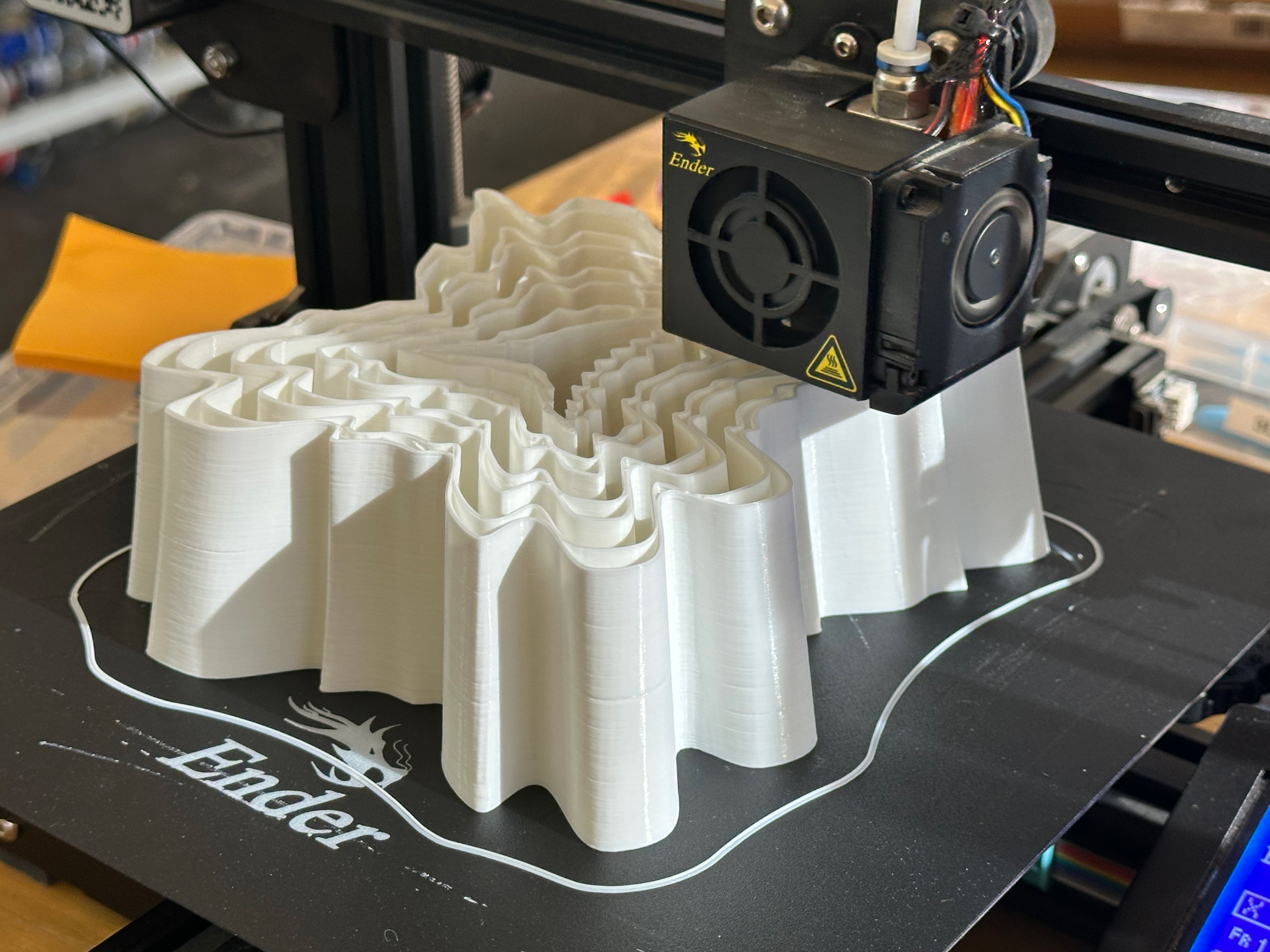

Initial form and idea processes. Including both digitally modeled and 3D printed forms to give real sense of how the contours are affected spatially and by daylighting.

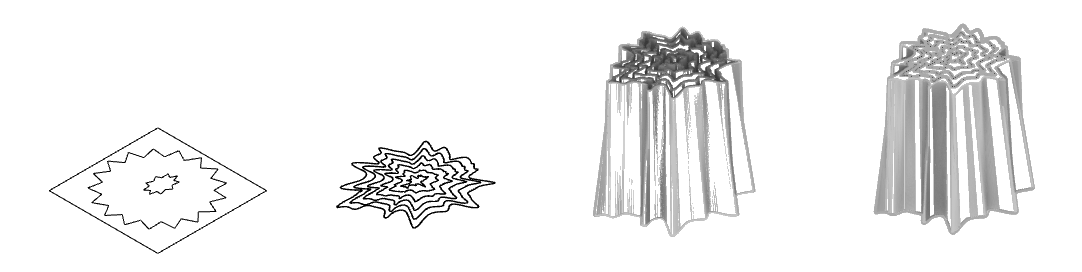

1. Rebuild & alter shapes (Rotate, Stretch, etc.) 2. Offset 3. Loft inner & outer offsets 4. Cap & Boolean Difference
Phase 2

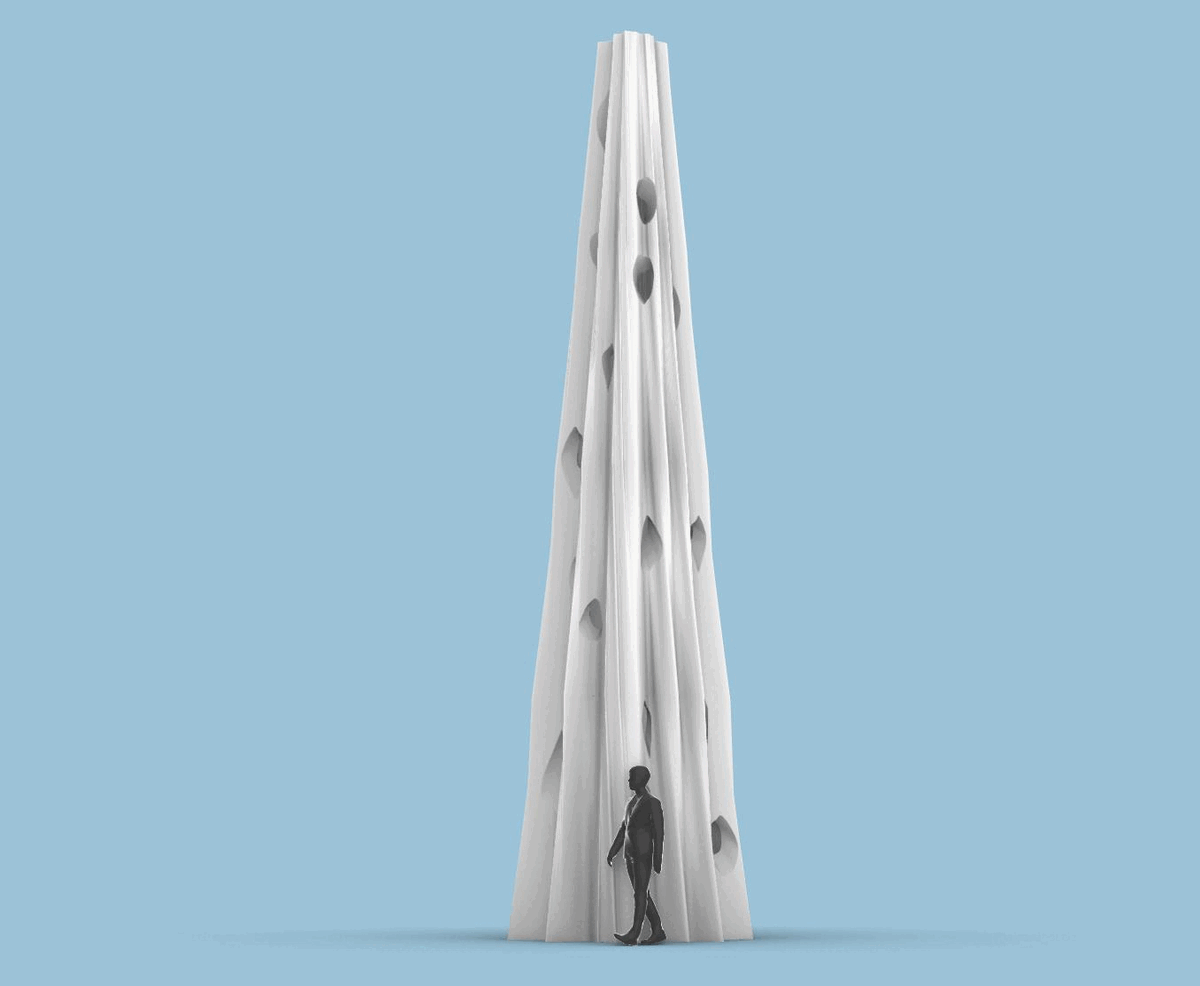

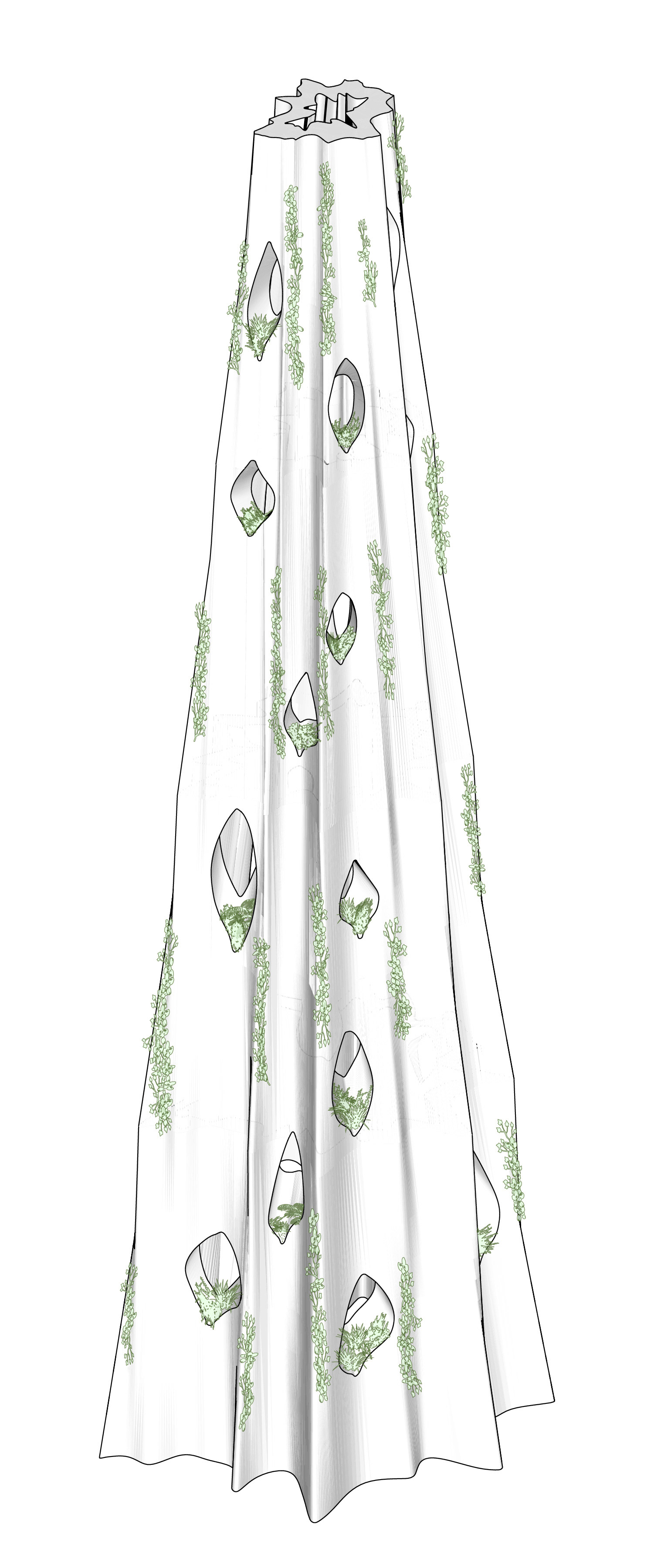

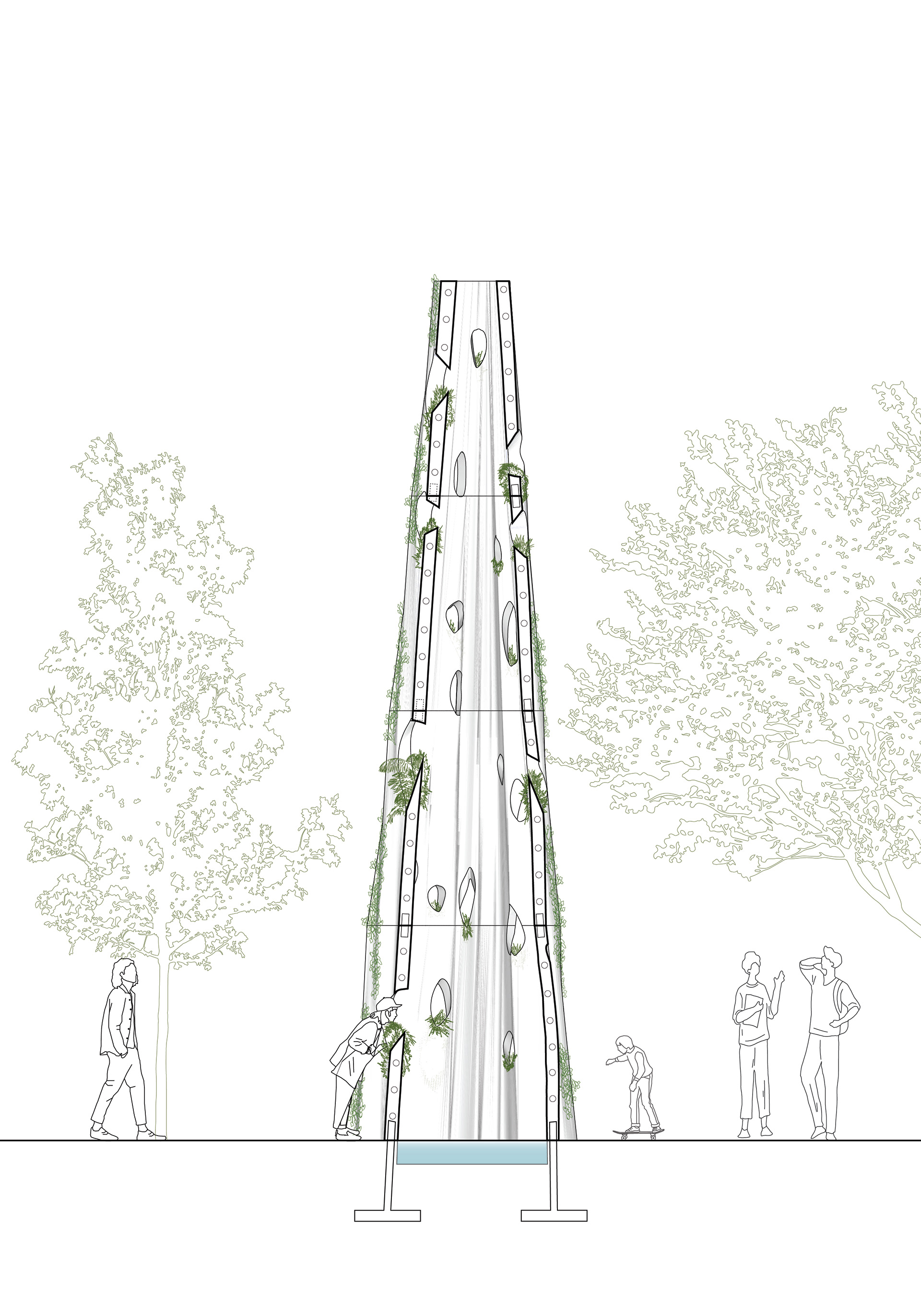

Originating from the deep groves and the bulging trunk base of the Bald Cypress tree, City tree is inspired by the undulating contours of the wood growth rings and the abstract knots that affect these rings.

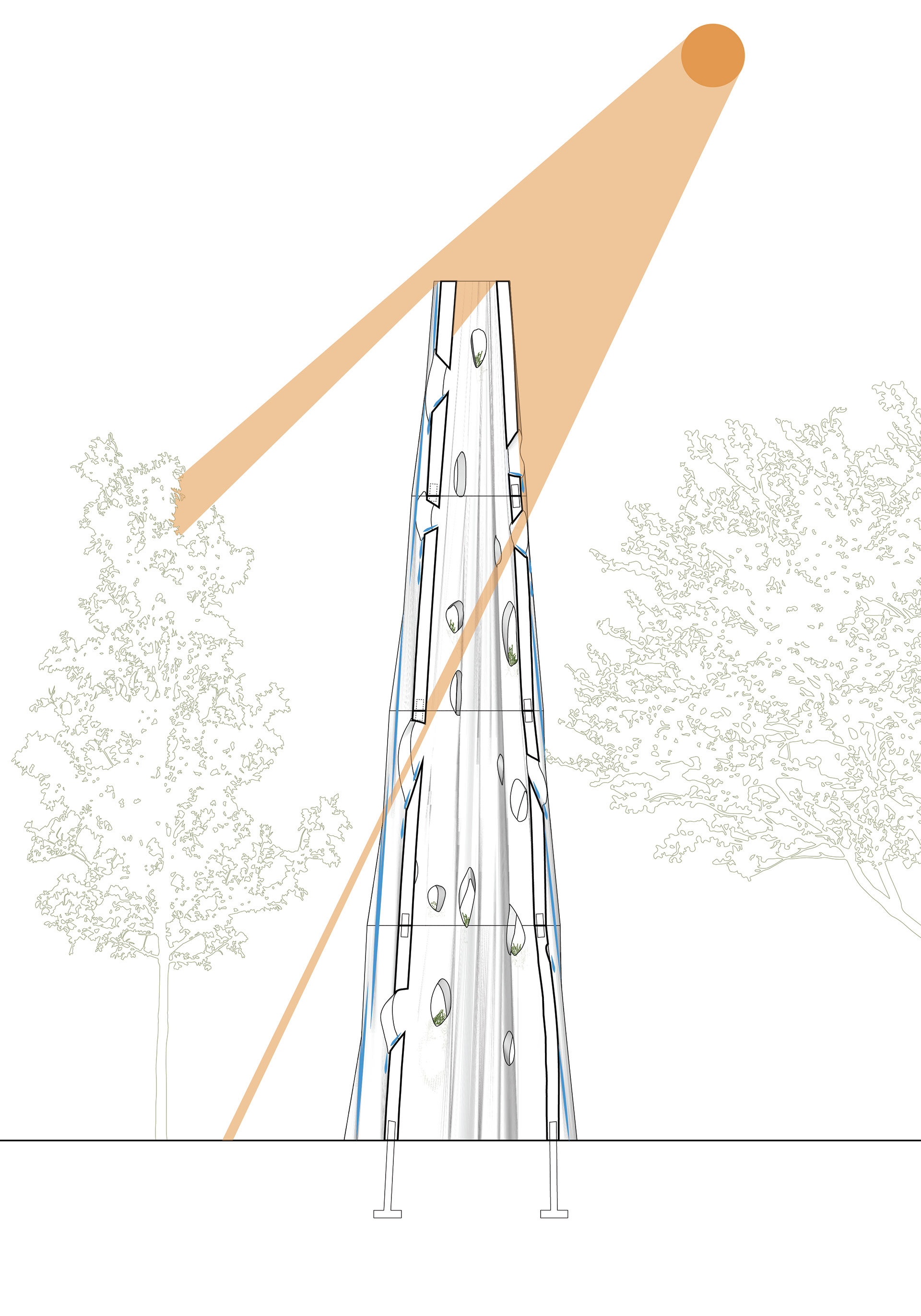

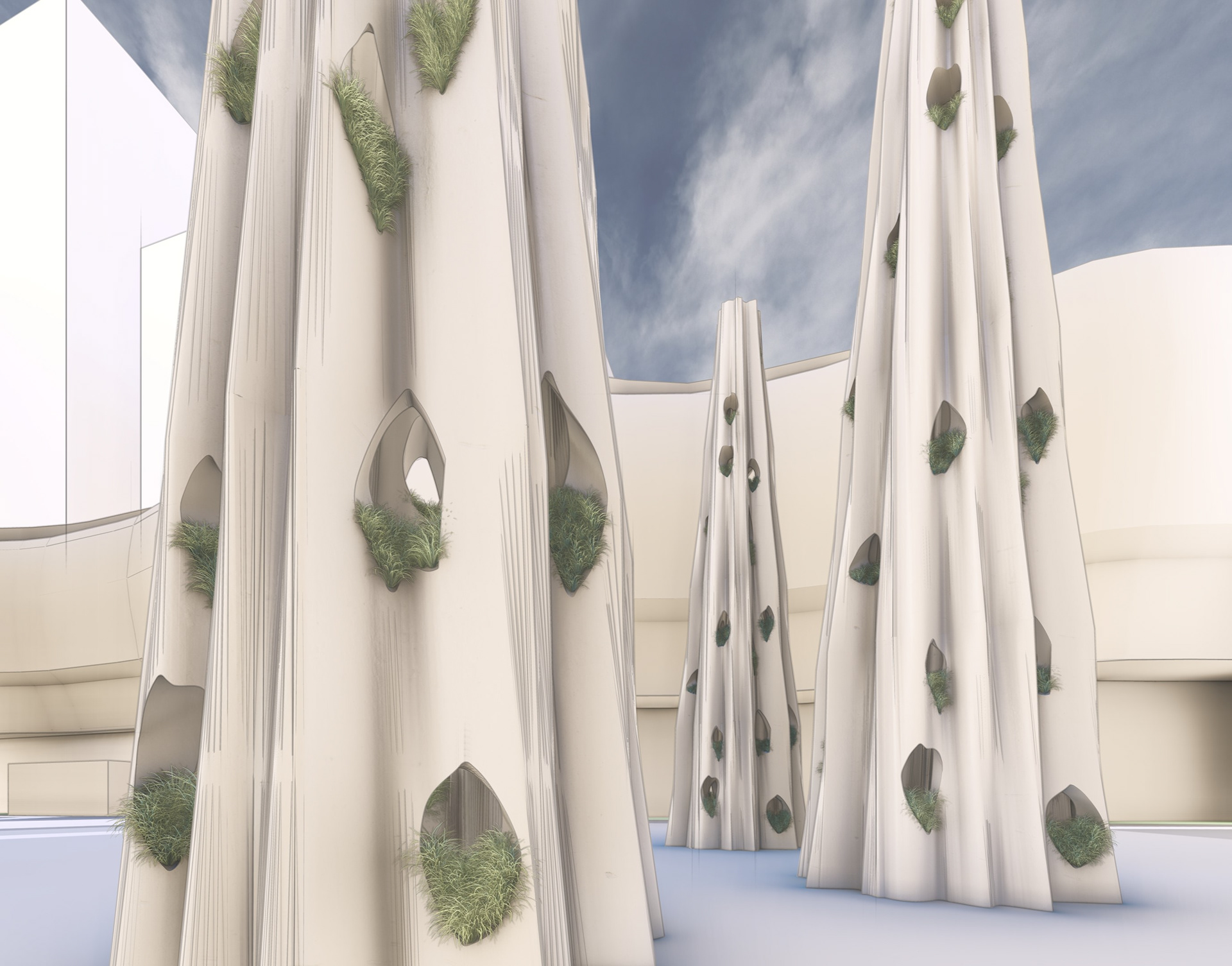

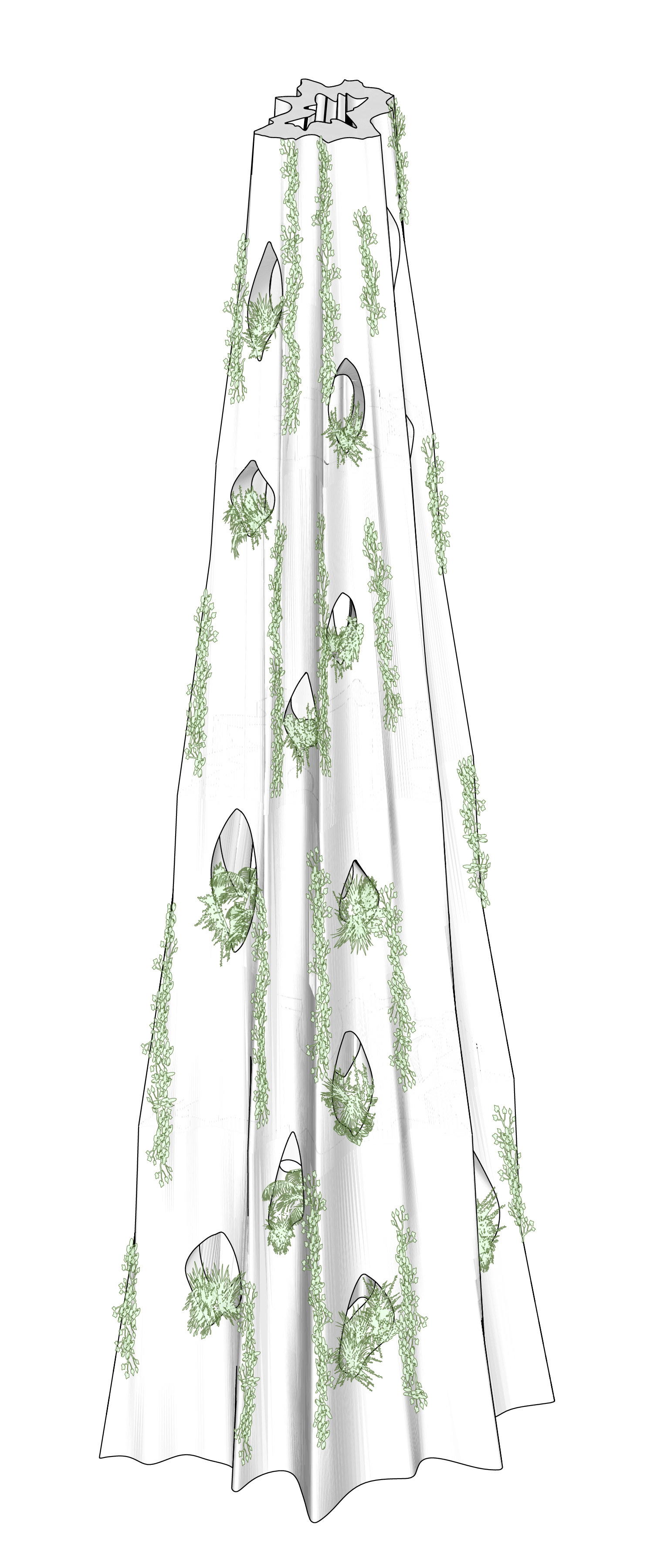

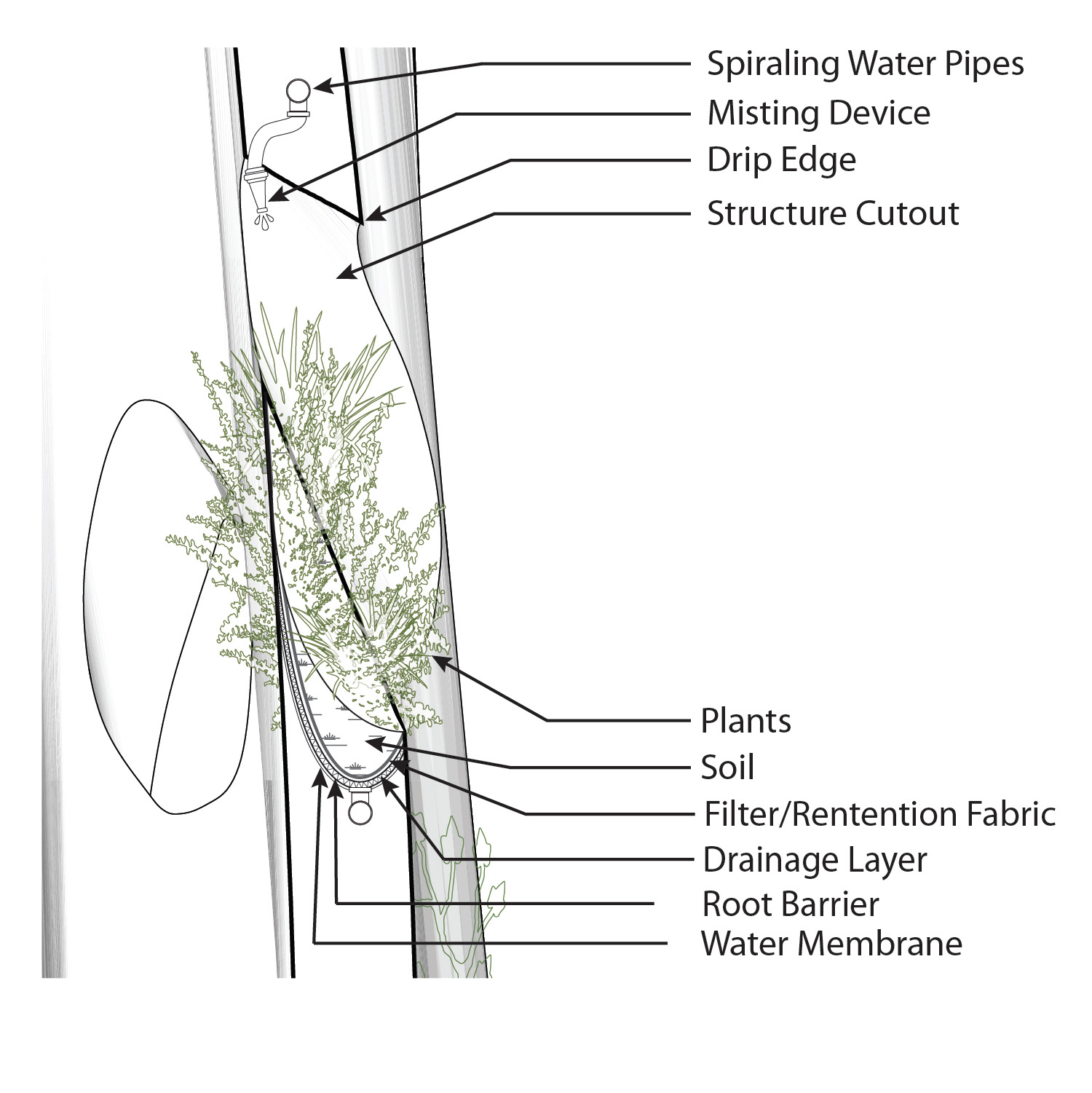

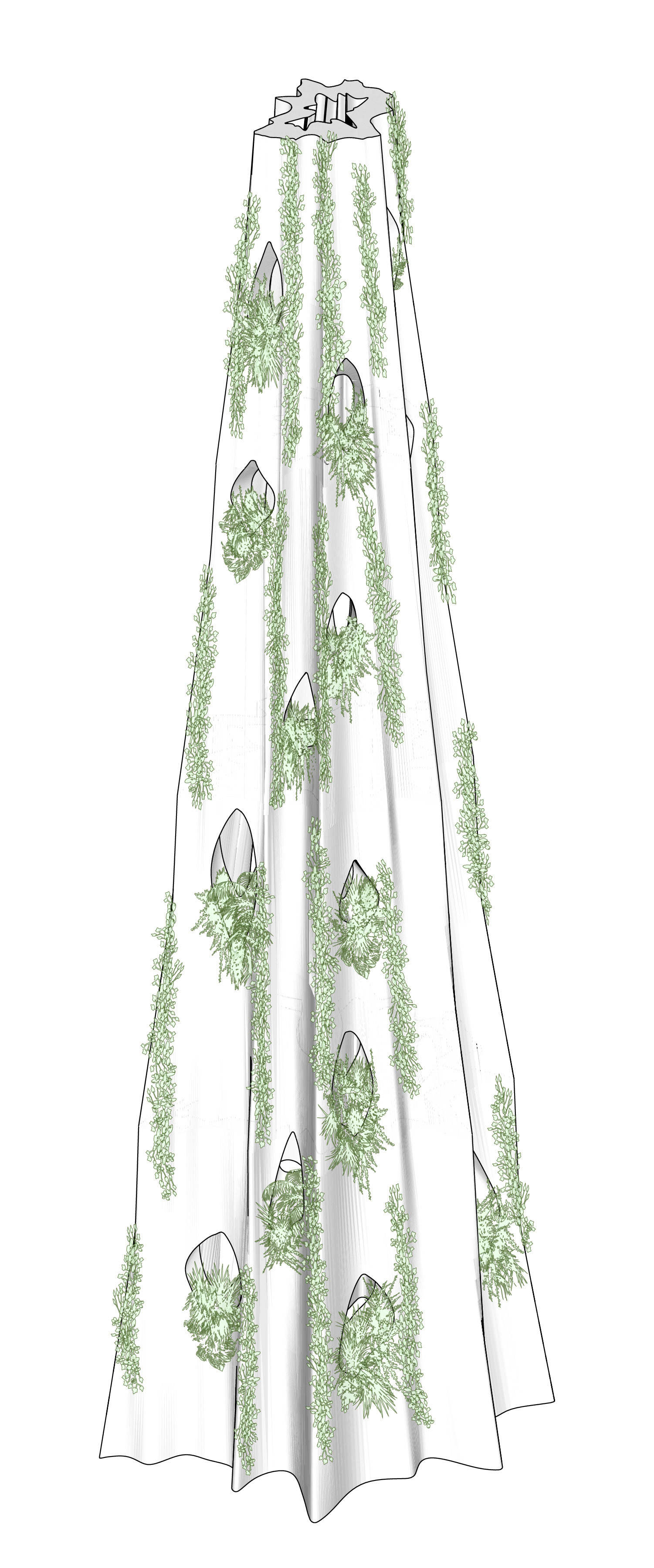

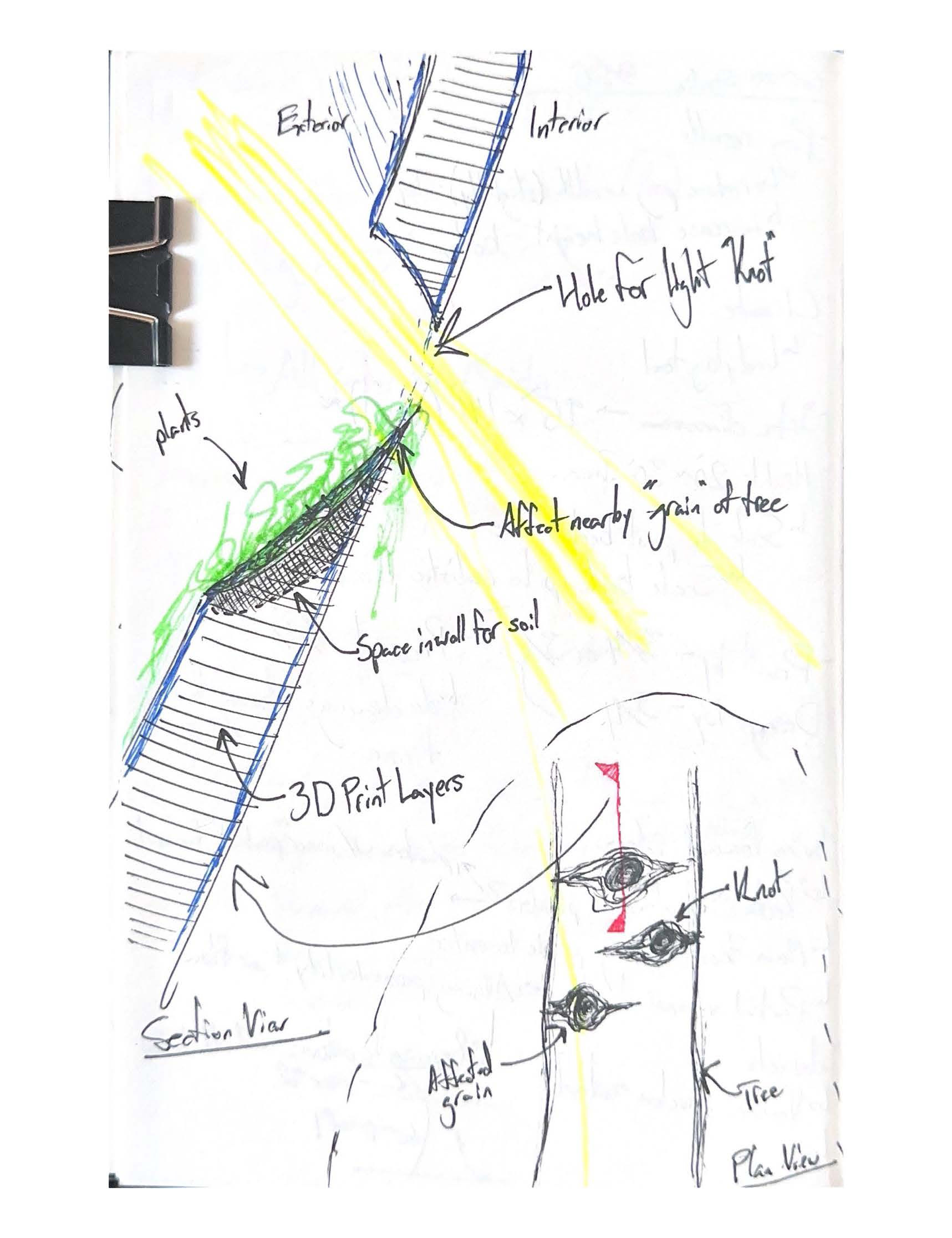

Planting elements are added to the bottom underside of the holes, where dripped water & sunlight can easily reach; in addition, while much like lichens, ideal green wall locations with natural water management were inspired from the grooves of a bald cypress. These holes give opportunities for people up close, on opposite sidewalks, and from building floors the opportunity to interact & observe this.

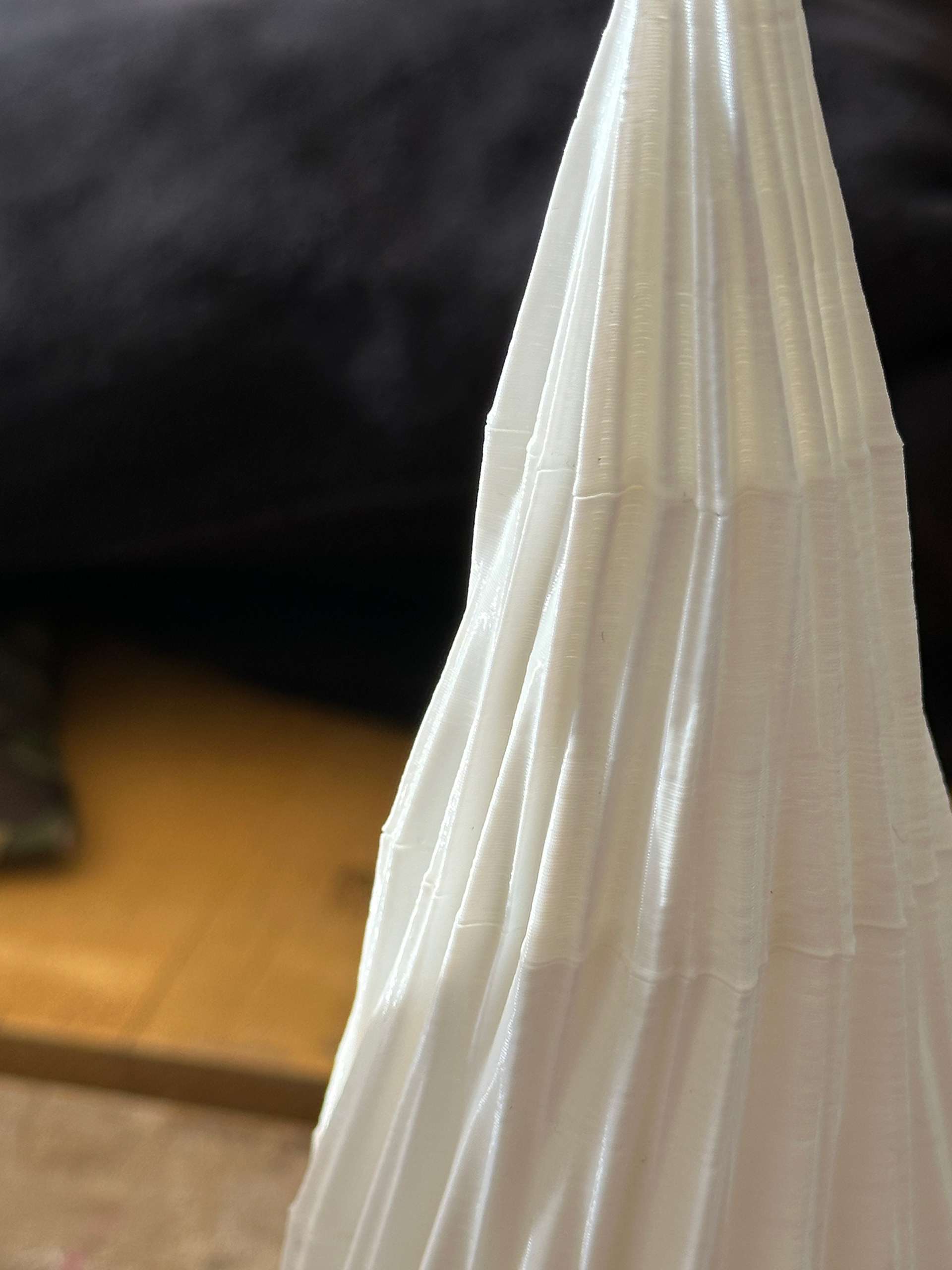

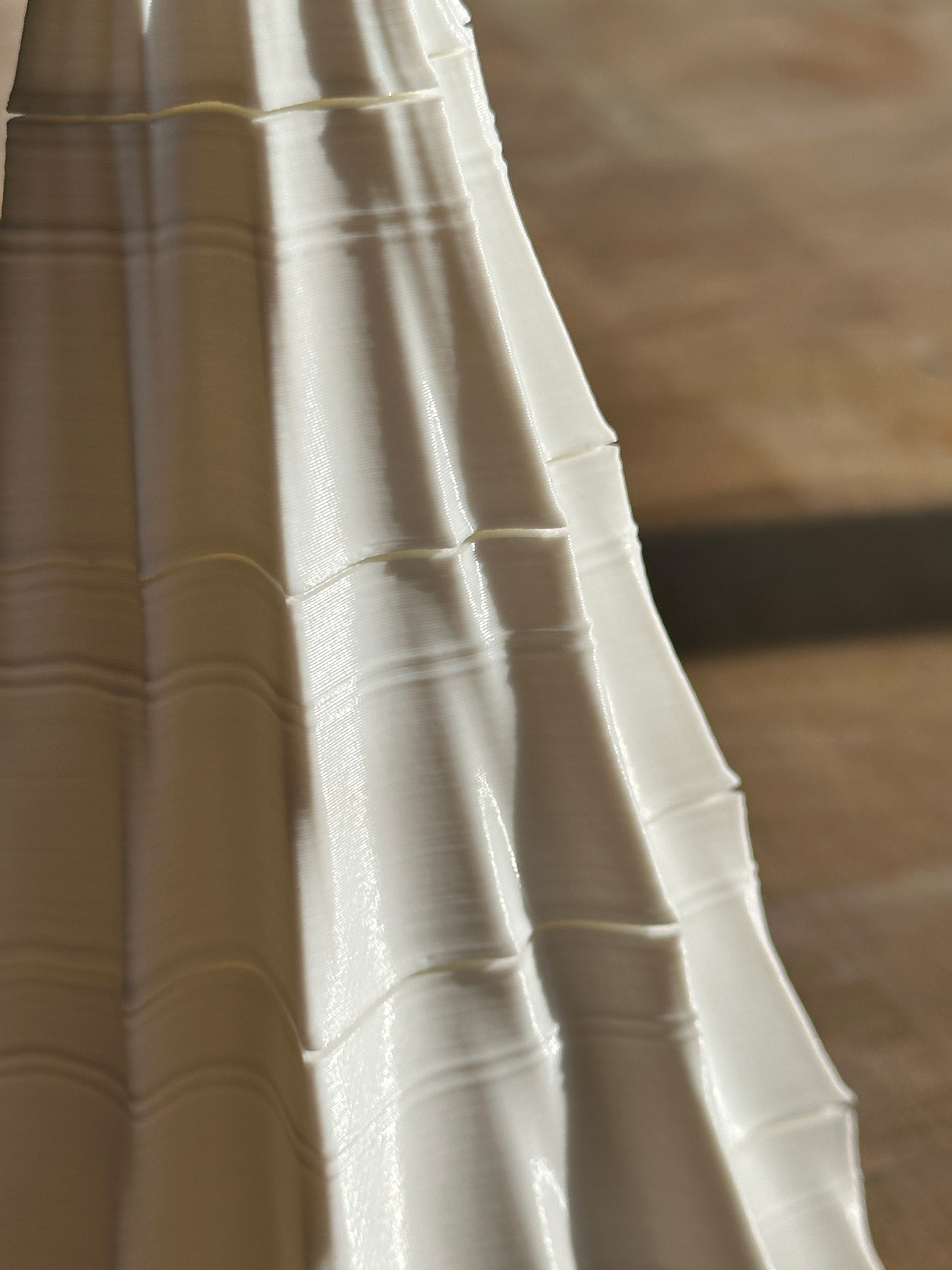

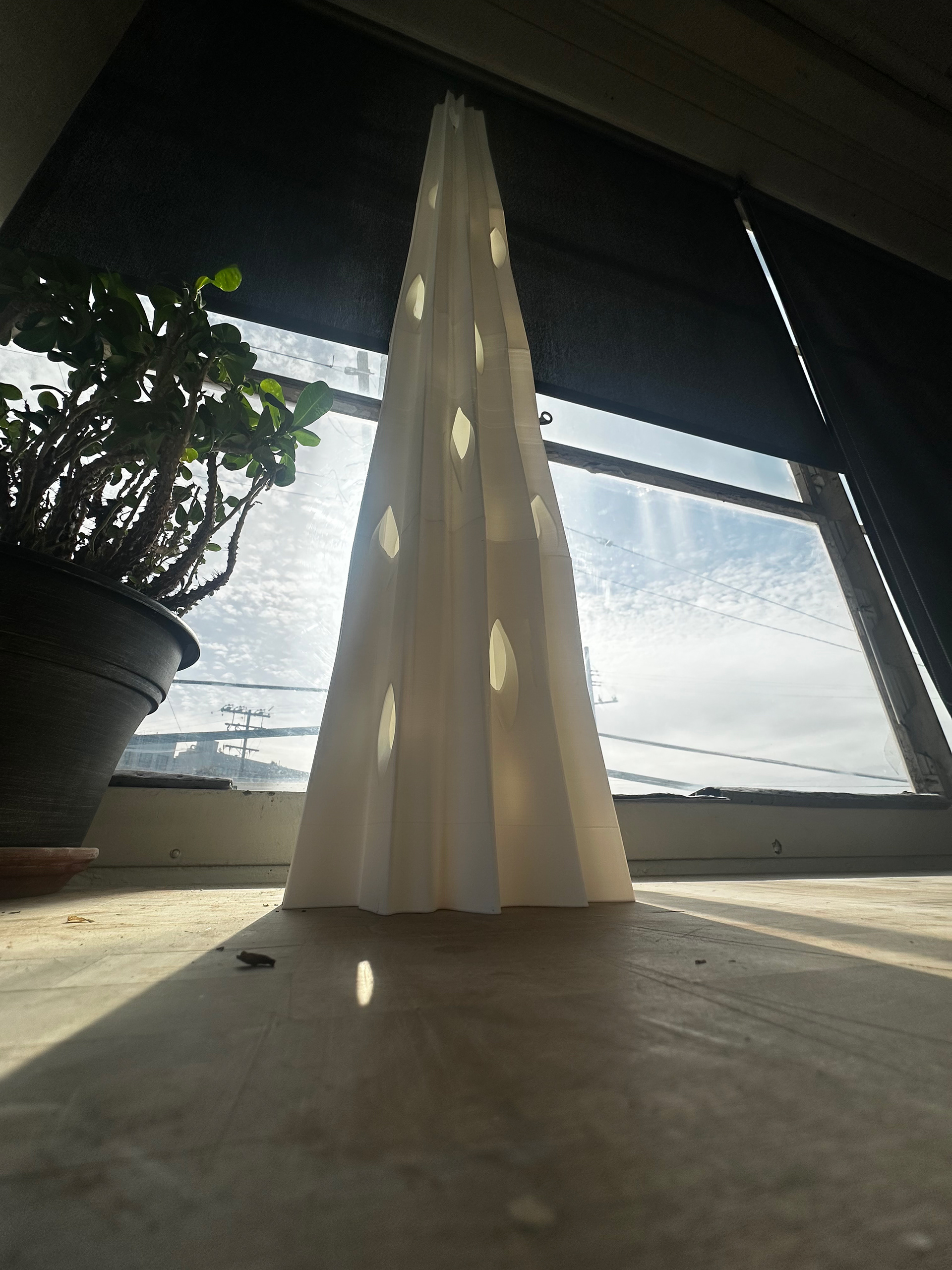

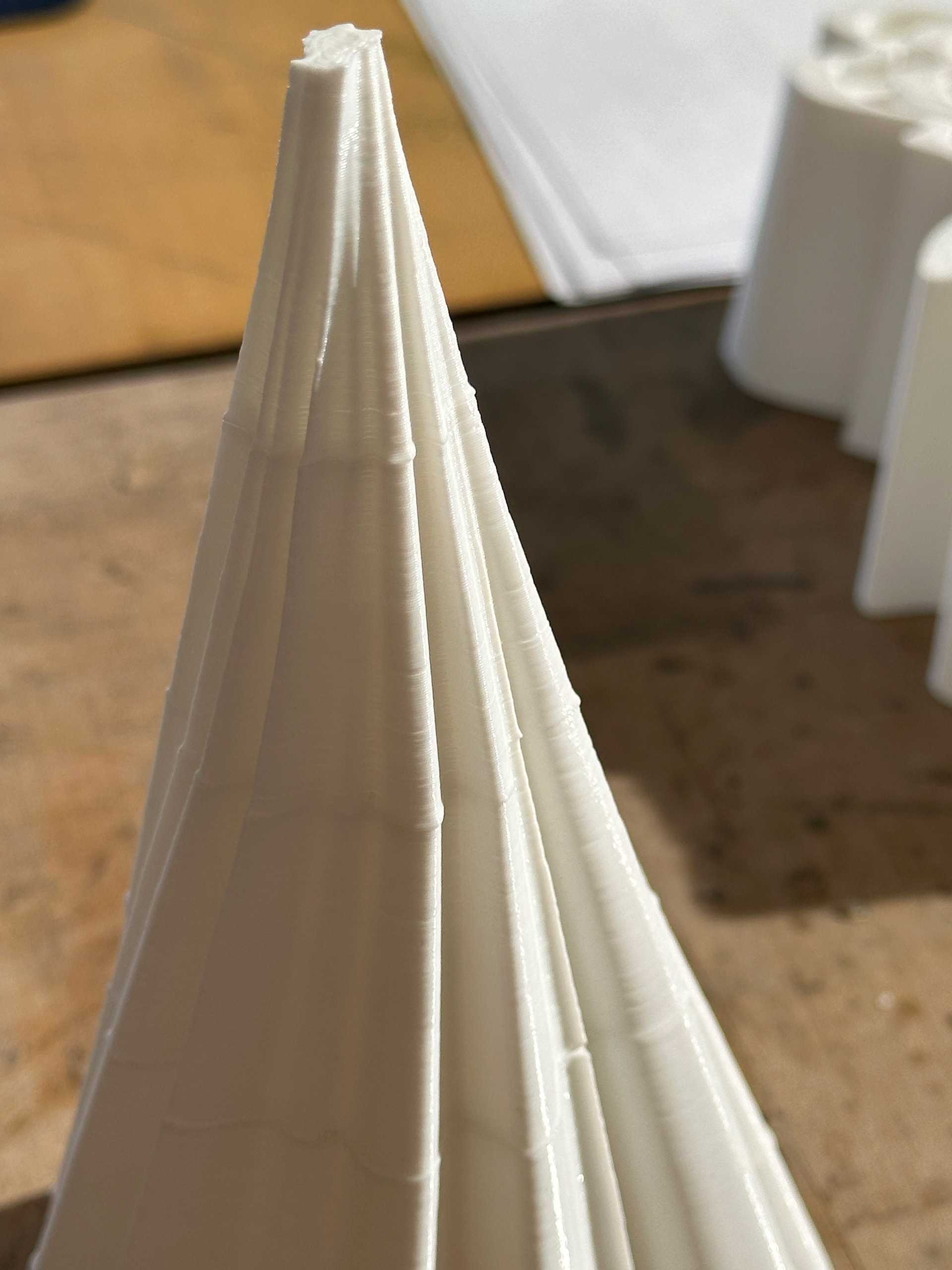

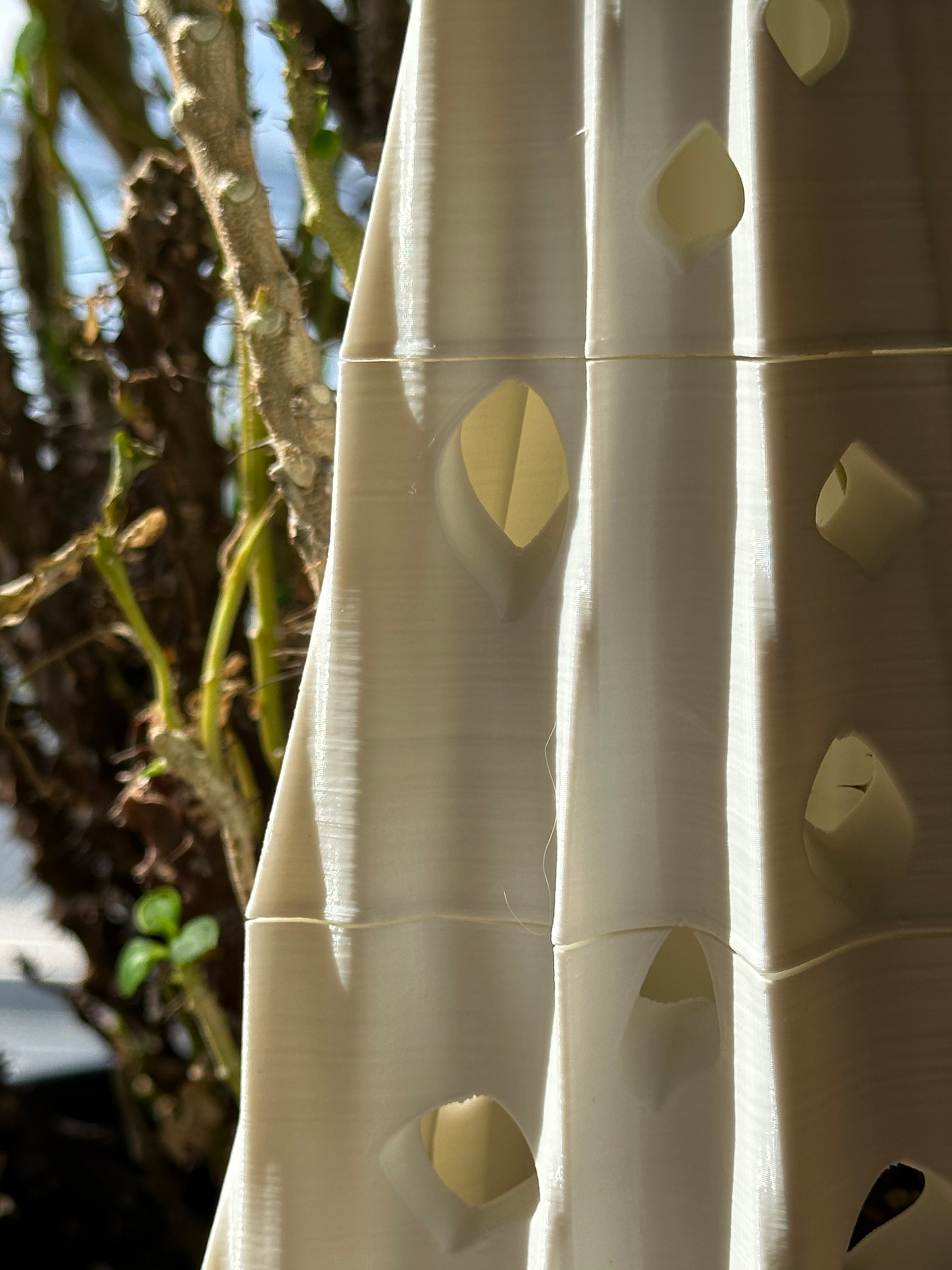

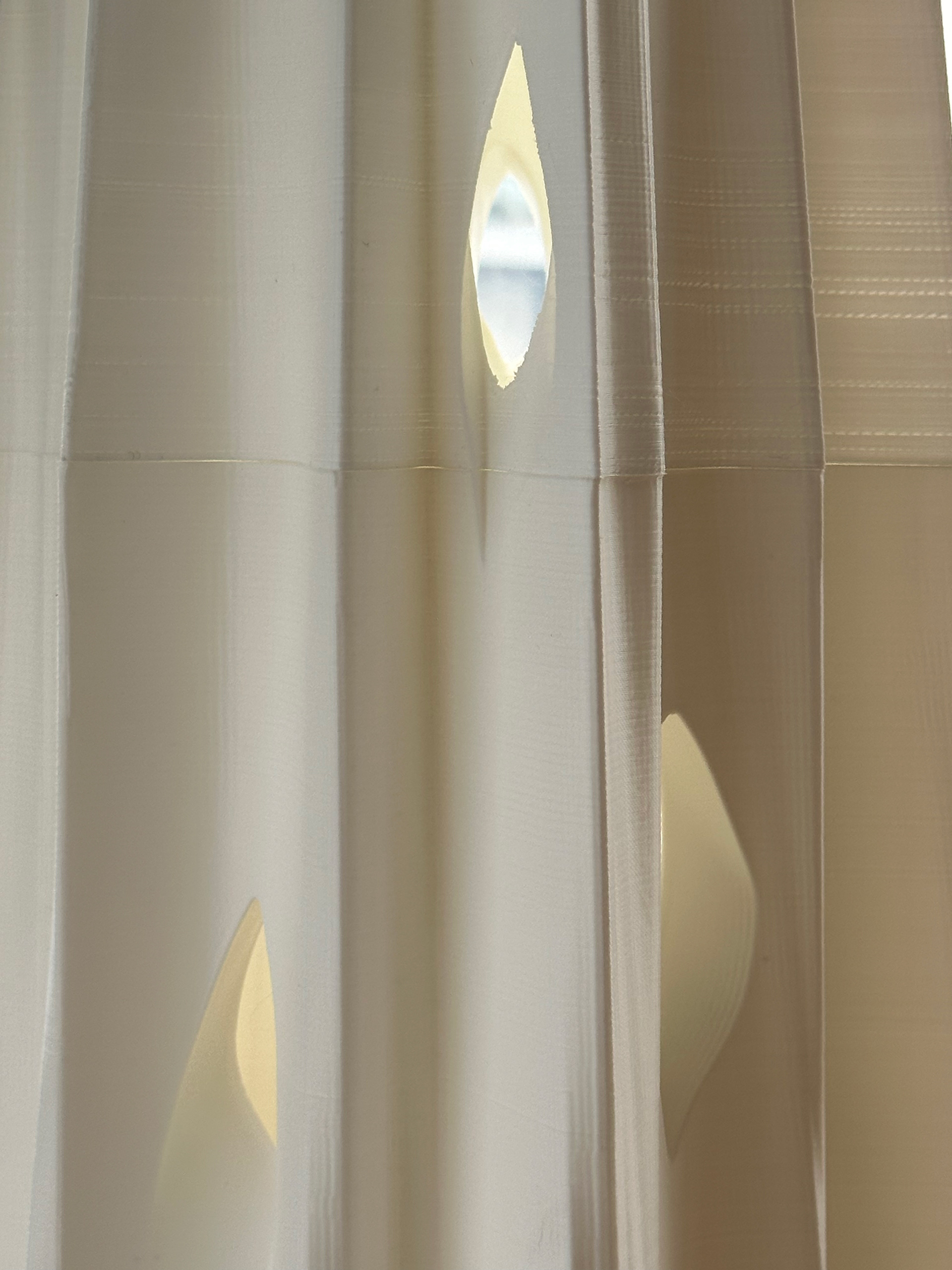

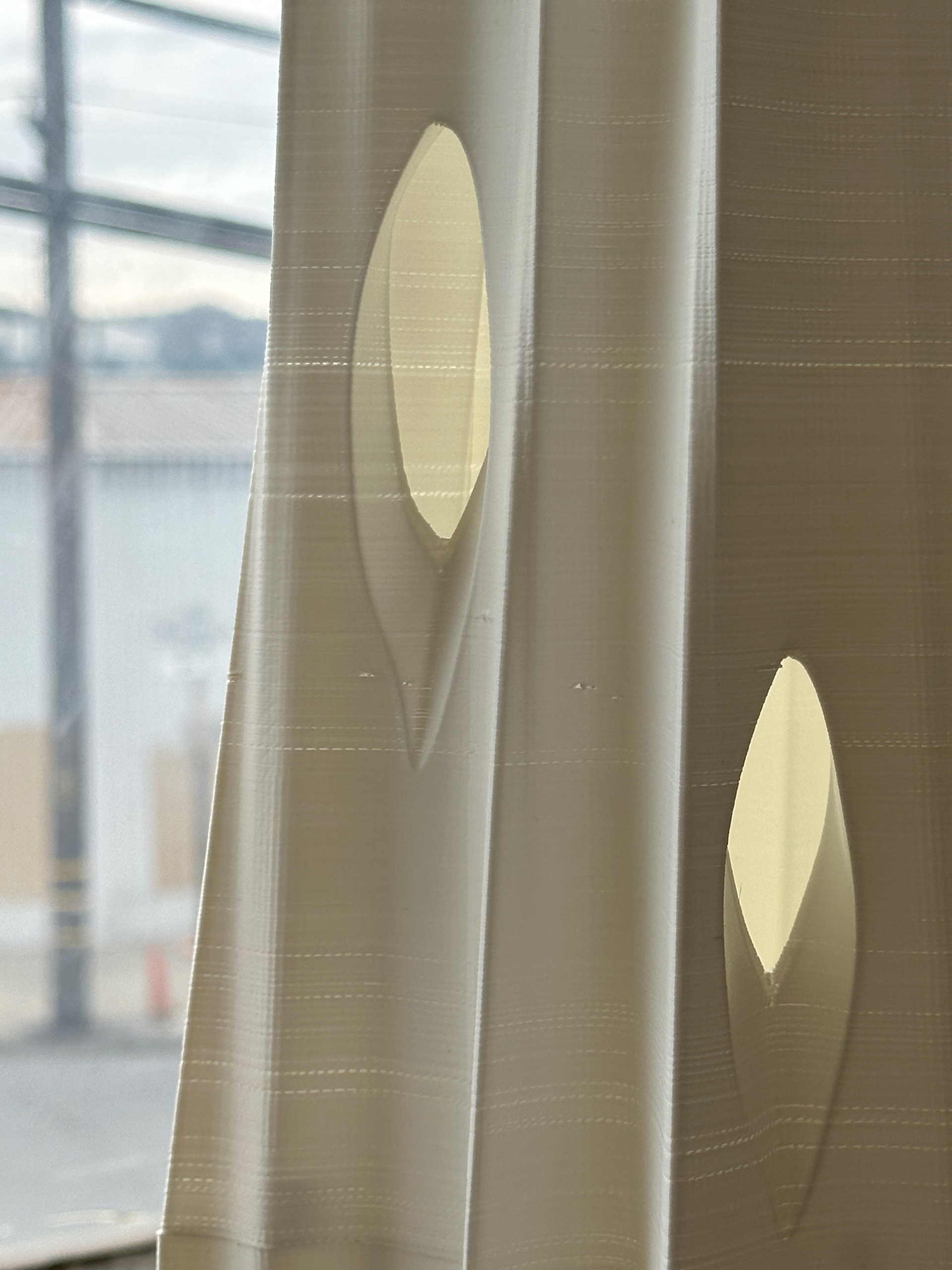

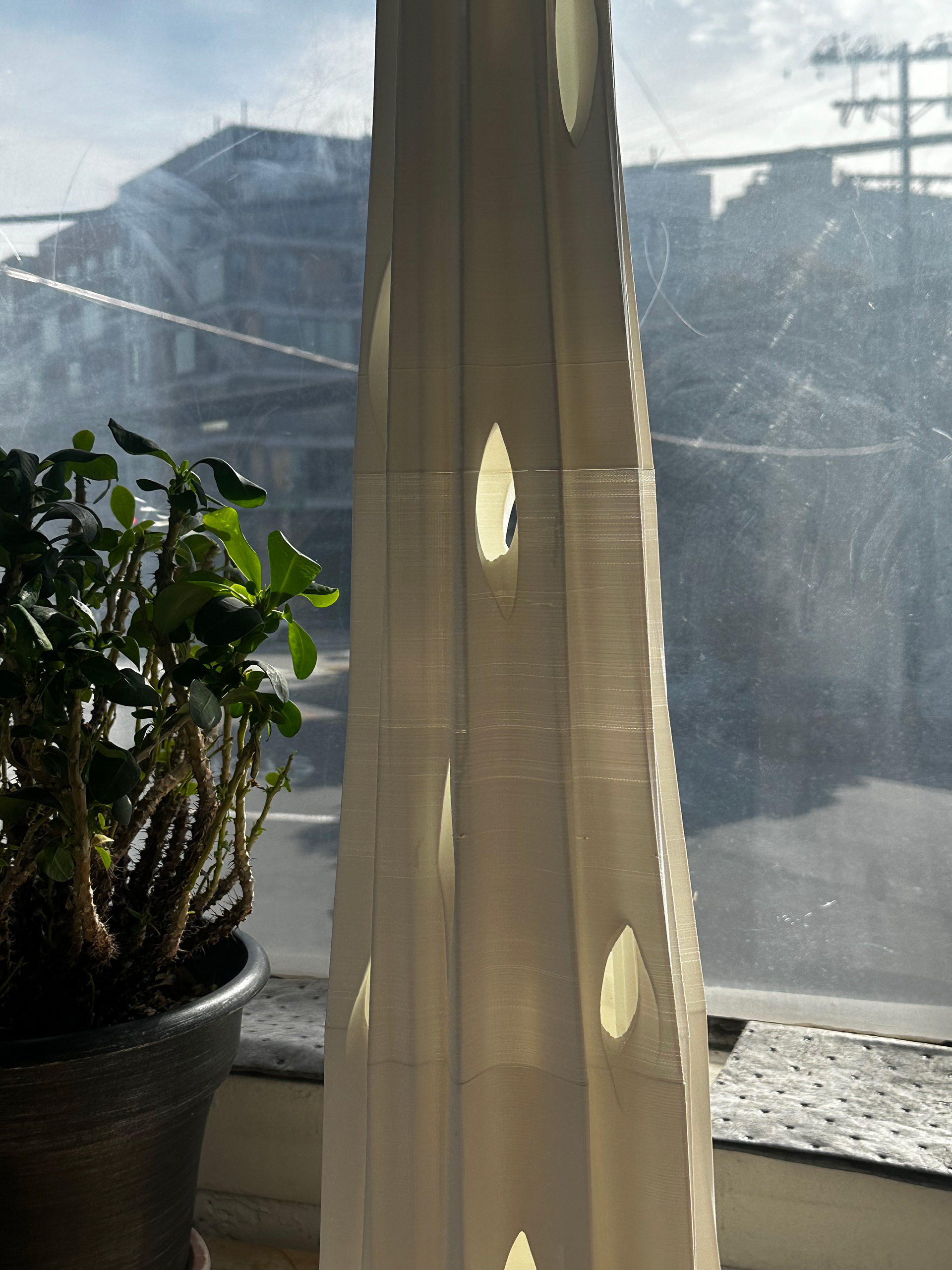

Final Model

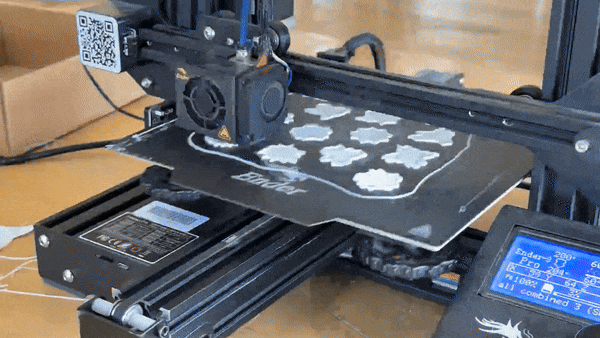

Process
Programs Used
Rhino | 3D-Printer | Illustrator | Lumion | Photoshop
